Allparts Retrofit Jackplate for Telecaster

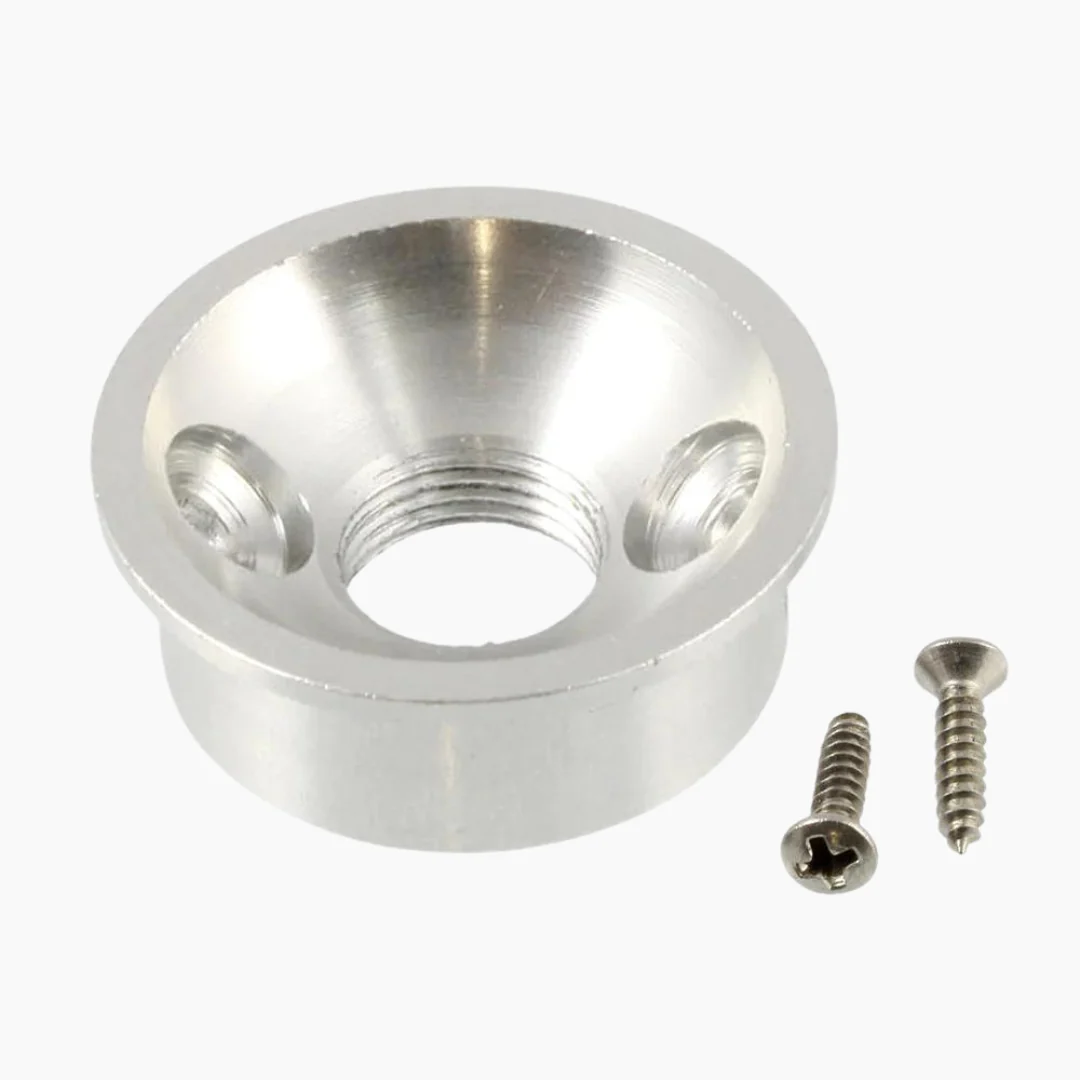

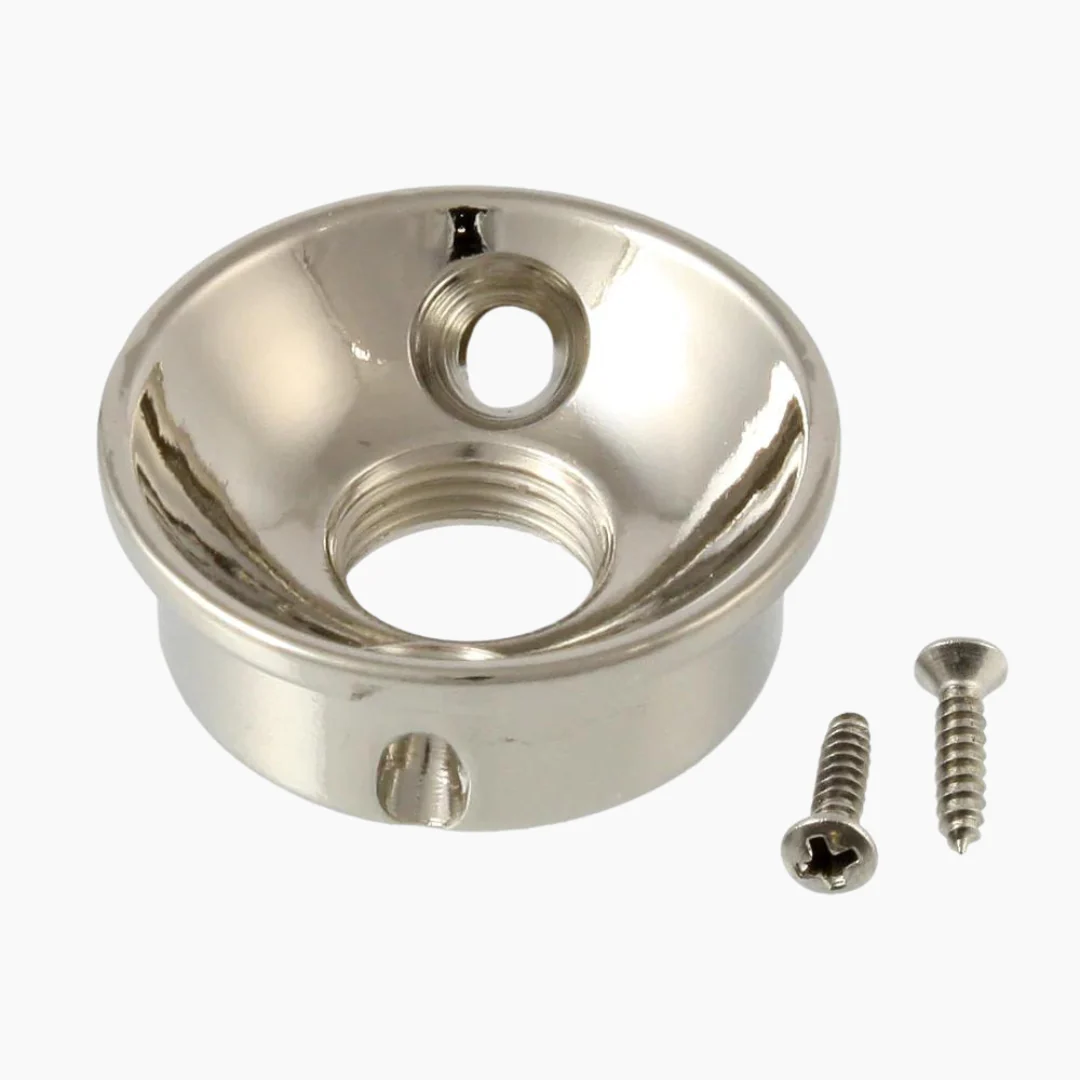

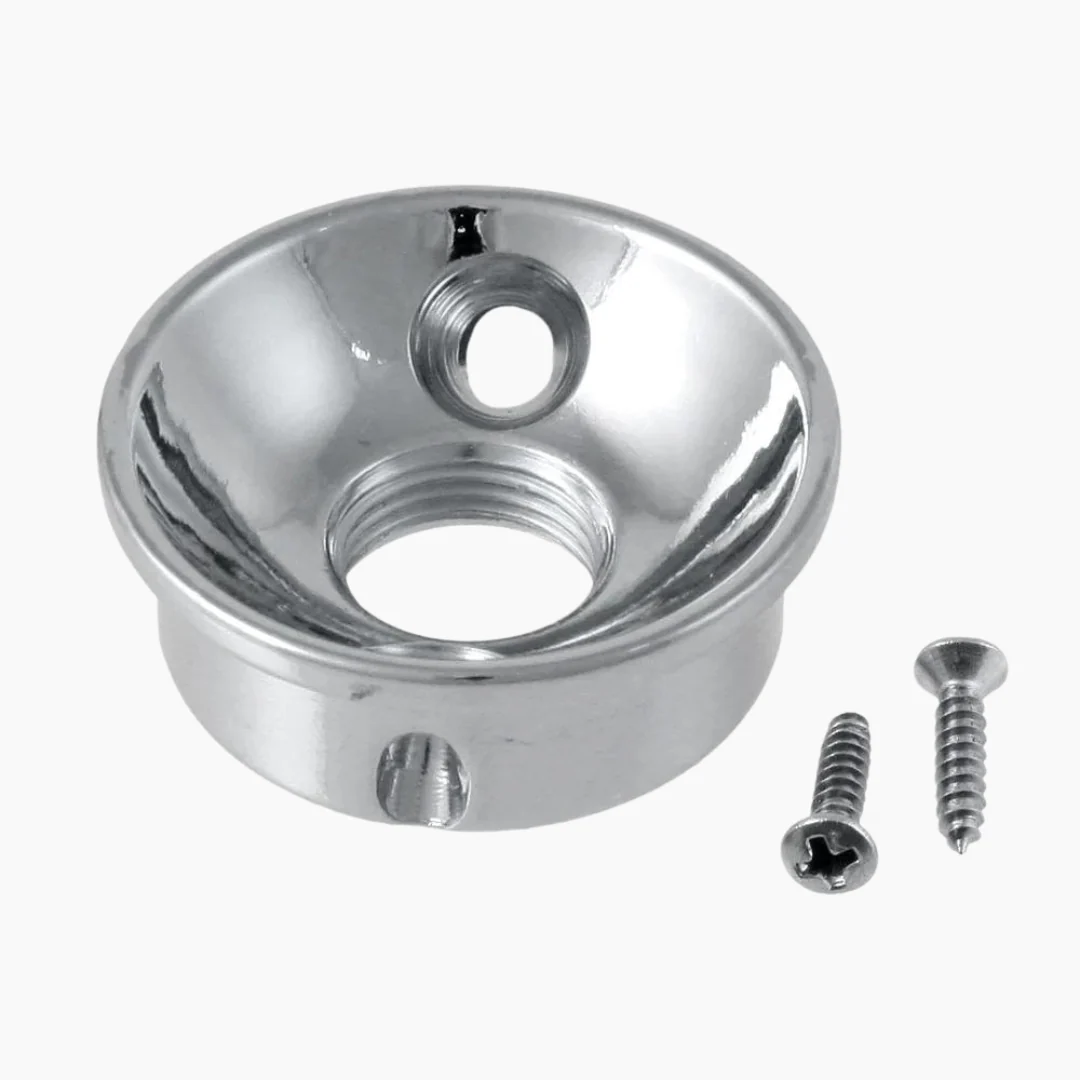

Retrofit Socket Jackplate for Telecaster®
Say goodbye to loose output jacks forever! The Retrofit features a unique threaded cup that screws directly onto a Switchcraft output jack. Designed to fit into the 7/8” -diameter hole standard on Telecaster® bodies, the Retrofit is an easy upgrade and offers a fail-safe connection.
Specifications:
- Fits 7/8"-diameter hole, without damage
- USA threads accepts a standard 1/4” Switchcraft Output Jack (not included)
- Solid brass with plating
- 1” x 3/8” at 15.6 grams
- Color: Gold, Black, Chrome, Aluminum, and Nickel
- Complete with mounting screws
Plating options: aluminum or plated brass
HOW TO:
- Drill the two mounting screw holes
- Screw/Thread jack into Electrosocket
- Hold the jack firmly in place while screwing in flat washer
Original: $6.99
-65%$6.99
$2.45
Description
Retrofit Socket Jackplate for Telecaster®
Say goodbye to loose output jacks forever! The Retrofit features a unique threaded cup that screws directly onto a Switchcraft output jack. Designed to fit into the 7/8” -diameter hole standard on Telecaster® bodies, the Retrofit is an easy upgrade and offers a fail-safe connection.
Specifications:
- Fits 7/8"-diameter hole, without damage
- USA threads accepts a standard 1/4” Switchcraft Output Jack (not included)
- Solid brass with plating
- 1” x 3/8” at 15.6 grams
- Color: Gold, Black, Chrome, Aluminum, and Nickel
- Complete with mounting screws
Plating options: aluminum or plated brass
HOW TO:
- Drill the two mounting screw holes
- Screw/Thread jack into Electrosocket
- Hold the jack firmly in place while screwing in flat washer
